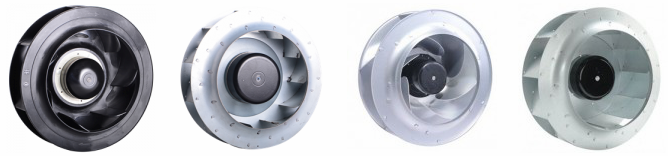

B-后倾离心




型号	电源类别	额定电压[V]	频率[Hz]	额定电流[A]	输入功率[W]	转速[R/min]	风量[m³/h]
B3P133-EC072	EC	220	50/60	0.425	55	4500	340
B3P155-EC072	EC	220	50/60	0.3	40	3570	420
B3P175-EC072	EC	220	50/60	0.65	80	3570	660
B3P190-EC072	EC	220	50	0.88	100	3570	800
B3P190-EC072	EC	220	50/60	0.76	100	3570	750
B3P220-EC072	EC	220	50/60	0.6	70	2500	860
B3P225-EC072	EC	220	50/60	0.6	80	2500	1050
B3P250-EC072	EC	220	50/60	0.4	60	2250	960
B3P220-EC092	EC	220	50/60	1	145	3310	980
B3P225-EC092	EC	220	50/60	0.87	130	3000	1300
B3P250-EC092	EC	220	50/60	1.1	145	3080	1310
B3P250-EC092	EC	220	50/60	0.87	130	2850	1430
B3P280-EC092	EC	220	50/60	1	135	2325	1580
B3P280-EC092	EC	220	50/60	0.9	130	2000	1900
B3P310-EC092	EC	220	50	1.3	170	1925	2000
B3P310-EC102	EC	220	50	1.4	315	2400	2600
B3P310-EC102	EC	220	50	1.45	325	2300	3000
B3P355-EC102	EC	220	50	1.5	330	1970	3900
B3P355-EC102	EC	220	50	1.4	310	1770	3700
B3P400-EC102	EC	220	50	1.25	275	1550	3750
B3P400-EC102	EC	220	50	1.25	280	1770	3800
B3P190-EC092	EC	220	50	3	70	3200	570
B3P190-EC092	EC	220	50	1.5	70	3200	570
B3P220-EC092	DC	24		4	100	3100	1060
B3P220-EC092	DC	48		2	100	3100	1060
B3P225-EC092	DC	24		4	110	2700	1120
B3P225-EC092	DC	48		2	110	2700	1120
B3P250-EC092	DC	24		2.2	105	2350	1180
B3P280-EC092	DC	24		4	95	1710	1750
B3P280-EC092	DC	48		2	95	1710	1750
B3P310-EC092	DC	24		4.8	115	1820	2100
B3P310-EC092	DC	48		2.4	115	1820	2100
B3P400-EC102	DC	48		4	190	1160	3300
B3P400-EC102	DC	48		4.2	200	1290	3500
B3P355-EC102	DC	48		3.5	165	1410	2750
B3P355-EC102	DC	48		3.5	175	1560	2800
B3P310-EC102	DC	48		4.8	230	1960	2400
B3P310-EC102	DC	48		4	190	2000	2000
B3P310-EC102	DC	48		2.5	120	1500	2400
B3P310-EC102	DC	24		5	120	1500	2000
B3P310-EC092	DC	48		2.5	120	1700	2100
B3P310-EC092	DC	24		5	120	1700	2100

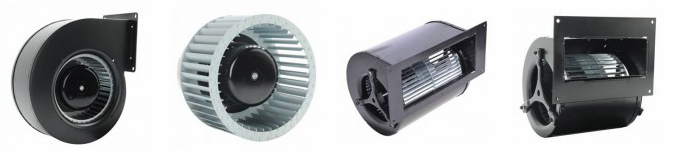

F-前倾离心




型号	电源类别	额定电压[V]	频率[Hz]	额定电流[A]	输入功率[W]	转速[R/min]	风量[m³/h]
F3P133-EC092	EC	220	50	0.85	110	2270	590
F3P133-EC092	EC	220	50	0.9	120	1850	780
F3P146-EC092	EC	220	50	1.2	160	1840	1020
F3P140-EC092	EC	220	50	0.8	90	2200	470
F3P150-EC092	EC	220	50	1.3	170	2550	620
F3P160-EC092	EC	220	50	1.3	170	2100	620
F3P180-EC092	EC	220	50	1.2	160	1320	1120
F3P200-EC102	EC	220	50	4.2	350	1720	1580
F3P133-DC092	DC	24		2.2	45	2000	225
F3P133-DC092	DC	48		1.1	45	2000	225
F3P140-DC092	DC	24		2.6	55	1750	410
F3P133-DC092	DC	24		4.8	115	1800	1010
F3P133-DC092	DC	48		2.4	115	1800	1010
F3P146-DC092	DC	24		4.4	105	1350	980
F3P146-DC092	DC	48		2.2	105	1350	980
F3P140-DC092	DC	48		1.3	55	1750	410
F3P150-DC092	DC	24		4.6	105	2400	480
F3P150-DC092	DC	48		2.3	105	2400	480
F3P160-DC092	DC	24		4.4	100	1750	500
F3P160-DC092	DC	48		2.2	100	1750	500
