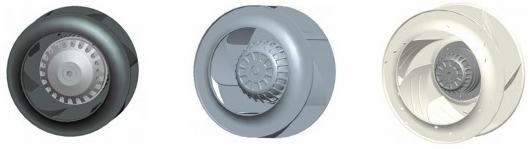

B-后倾离心




型号	电源类别	额定电压[V]	频率[Hz]	额定电流[A]	输入功率[W]	转速[R/min]	风量[m³/h]
B2E133-060A-AY00	AC	220/230	50/60	0.14/0.14	30/33	2700/3250	220/270
B2E175-063A-AA00	AC	220/230	50/60	0.24/0.32	52/77	2500/2700	385/418
B2E180-049A-AA00	AC	220/230	50/60	0.24/0.32	52/77	2550/2850	400/450
B2E190-063A-AA00	AC	220/230	50/60	0.27/0.35	60/76	2500/2700	540/600
B2E220-064A-AC00	AC	220/230	50/60	0.41/0.46	90/100	2500/2700	810/900
B2E225-089A-AE00	AC	220/230	50/60	0.65/0.94	145/205	2650/3000	1200/1350
B2E250-077A-AE00	AC	220/230	50/60	0.62/0.9	135/190	2450/2600	1250/1300
B2E280-080A-AG00	AC	220/230	50	1.1	250	2560	2000
B2D280-135A-AS00	AC	220/230	50/60	0.95/1.6	500/680	2750/2900	2600/2700
B4E315-135A-AL00	AC	220/230	50/60	0.6/0.8	135/180	1400/1580	1900/2000
B6E315-135A-AL00	AC	220/230	50/60	0.38/0.42	75/85	940/1050	1000/1100
B4E355-145A-AM00	AC	220/230	50/60	0.75/1.2	165/245	1400/1460	2450/2580
B6E355-145A-AM00	AC	220/230	50/60	0.46/0.5	100/130	930/1080	1220/1320
B4E355-169A-AN00	AC	220/230	50/60	1/1.35	210/280	1350/1550	2800/3100
B4E400-147A-AN00	AC	220/230	50/60	1/1.5	260/330	1350/1450	2850/2950
B6E400-147A-AN00	AC	220/230	50/60	0.72/0.85	135/155	940/1050	2100/2250
B4E400-185A-AS00	AC	220/230	50	1.5	430	1380	4400
B4D400-185A-AS00	AC	220/230	50	0.8	510	1370	4400
B4D450-218A-AT00	AC	380/400	50/60	1/2.5	550/960	1340/1680	5600/6500
B6D450-218A-AT00	AC	380/400	50/60	1/1.2	300/360	920/1050	3900/4200

F-前倾离心

额定电压[V]	频率[Hz]	额定电流[A]	输入功率[W]	转速[R/min]	风量[m³/h]
220/230	50/60	0.18/0.25	40/50	2500/2880	255/270
220/230	50/60	0.4/0.54	85/118	2490/2900	275/320
220/230	50/60	0.55/0.66	110/140	2700/3160	460/470
220/230	50/60	0.61/0.89	130/187	2630/2930	480/535
220/230	50	0.7	150	2580	600
